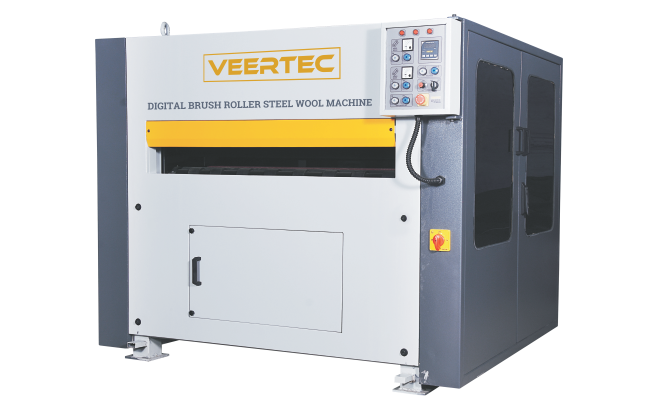

Digital roller steel wool machine is specially developed for uniform and precise steel wool operation on plywood sheet with new concept.
It will able to finish a steel wool work in short time with high productivity result in minimum time period.
Special skill operator requirement is negative. Easy to operate and also in maintenance.
| MODEL | RXF 200 | RXF 400 | RXF |
|---|---|---|---|
| Brushing roller | 2 Head | 4Head | 4Head roller + 2 Cleaning brush |
| Brushing roller size | 210 mm OD X 1270 mm length | 210 mm OD X 1270 mm length | 210 mm OD X 1270 mm length |
| Steel wool position |
Only top side | Top & Bottom side | Top & Bottom side |
| Max. steel wool speed | 3 Ply sheet / Minute | 3 Ply sheet / Minute | 3 Ply sheet / Minute |
| Sheet thickness for steel wool | Min. 4 mm to Max. 52 mm | Min. 4 mm to Max. 52 mm | Min. 4 mm to Max. 52 mm |
| Vacuum blower | 2 Panel | 4 Panel | 4 Panel |
| Power consumption | 11Hp (without blower) | 20.5Hp (without blower) | 20.5Hp (without blower) |
| Digital count meter | Yes ( Optional) | Yes ( Optional) | Yes ( Optional) |
