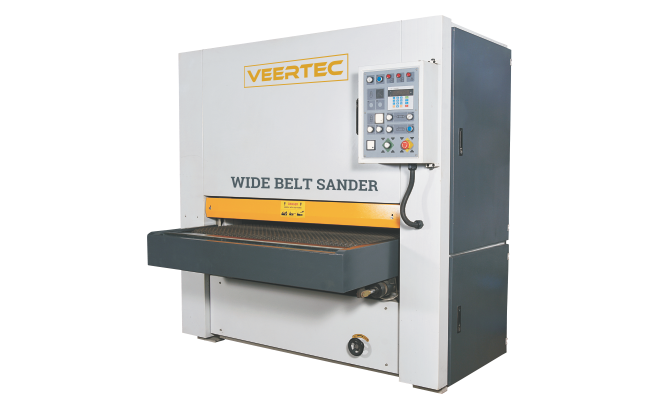

Wide Belt Sanding Machine
Heavy Duty Construction
User Friendly
Electrical Control Panel Fully Automatic
Cost Effective
Stable Performance & High Production Efficiency
Hi-tech Machinery & Speed Technology
Vibration Free Construction
Blower to Remove Dust
Brusher (Optional)
| MODEL | RP RXF 100 | RP RXF 200 |
|---|---|---|
| Machine Name | 1 Head Wide Belt Sander | 2 Head Wide Belt Sander |
| Max. Working Width | 40-1300 mm | 40-1300 mm |
| Working Thickness | 2.5-80 mm | 2.5-80 mm |
| Working Length | >580 mm | >580 mm |
| Speed of Feeding | 6-45 M/Min | 6-45 M/Min |
| Revolving Speed of 1st Sanding Belt | 18 M/S | 18 M/S |
| Revolving Speed of 2nd Sanding Belt | - | 14 M/Ss |
| Size of Sanding 1st Belt (WxC) | 1330 x 2200 mm | 1330 x 2200 mm |
| Size of Sanding 2nd Belt (WxC) | - | 1330 x 2200 mm |
| Roller Diameter | 210 mm | 210 mm |
| Motor Power of 1st Sanding Unit | 22 kw | 22 kw |
| Motor Power of 2nd Sanding Unit | - | 15 kw |
| Motor Power of Feeding | 4 kw | 4 kw |
| Motor Power of Thickness Adjustment | 0.55 kw | 0.55 kw |
| Motor Power of Brush Roller | - | 0.37 kw |
| Motor Power of Vacuum Table | - | 3 kw |
| Total Motor Power | 26.55 kw | 44.92 kw |
| Power Supply Requirement | 415 V/AC, 50HZ, 3 Phase | 415 V/AC, 50HZ, 3 Phase |
| Compressed Air Pressure | 0.55 MPA | 0.55 MPA |
| Compressed Air Consumption | 0.43 M /Min | 0.76 M /Min |
| Dust Extraction Requirement | 4200 M /H | 4200 M /H |
| Min. Sucked Air Velocity | 25-30 M/S | 25-30 M/S |
| Dia. of Dust Hood Outlet for Sanding Unit | 200 mm x 1 PCS | 200 mm x 2 PCS |
| Dis. of Dust Hood Outlet for Brush Roller | - | 1500 mm x 2 PCS |
| Machine Overall Size (L x W x H) | 1580 x 1960 x 2160 mm | 1950 x 2530 x 1970 mm |
| Machine Weight | ~ 2200 KG | ~ 2750 KG |
