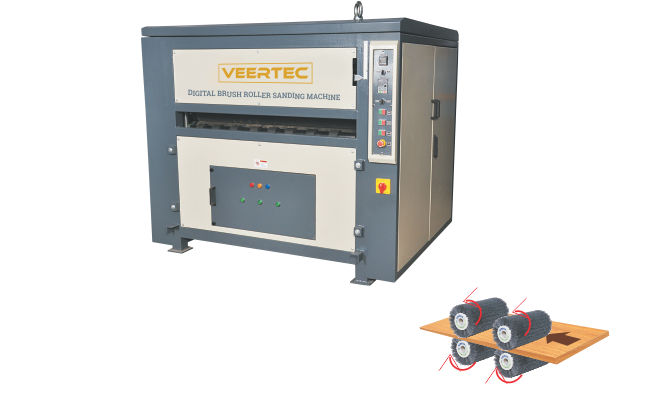

Digital Brush Roller Sanding Machine
Digital Brush Roller Sanding Machine is specially developed for uniform and precise sanding operation on ply board and laminated sheet.
With new brushing concept it will provide consistent grain and roughness as desire against belt process.The brush required less brushing time and work long lasting. Save belt replacements time, increase efficiency in sanding operation and maximize production.
| TECHNOLOGY | ABRASIVE BRUSH / ROLLER PROCESS |
|---|---|
| Surfacing | Consistent Uniform Surface |
| Quality | Finishing due to self dressing |
| Labors | User friendly can be operate by unskill labor |
| Life | Longer brush life |
| Consumable Cost | Very economical due to longer life |
| Productivity | Increasing the productivity |
| Maintenance Cost | Maintenance free process |
| MODEL | RXF 200 | RXF 400 | RXF 600 (Only Digital Brush Roller Sanding Machine) |
|---|---|---|---|
| Brushing Roller | 2 Head (Roller) | 4 Head (Roller) | 4 Head (Roller) + 2 Cleaning Brush |
| Brushing Roller Size | 210 mm OD x 1270 mm Length | 210 mm OD x 1270 mm Length | 210 mm OD x 1270 mm Length |
| Sanding | Only top side | Top and Bottom side | Top and Bottom side |
| Max. Sanding Speed | 3 Ply sheet/min. | 3 Ply sheet/min | 3 Ply sheet/min |
| Sanding Sheet Thickness | Min. 4 mm to max 52 mm | Min. 4 mm to max 52 mm | Min. 4 mm to max 52 mm |
| Vaccum Blower | 2 Penal | 4 Penal | 4 Penal |
| Power | 7 Hp (Without blower) | 17 Hp (Without blower) | 20 Hp (Without blower) |
| Digital Count Meter | Yes (Optional) | Yes (Optional) | Yes (Optional) |
